| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Model Number | OSHL-2LF |
| Operating Temperature | 0 To 50 Degree Celsius |
| Battery | 12V, 7.2 Ah VRLA |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Storage Temperature
-10 To 60 Degree Celsius
Usage/Application
Home Lighting Purpose
Daily Hours of Operation
Average 5 Hours
Luminary Driver Efficiency
>88%
Luminary Drive Frequency
1 MHz
System Self Current Consumption
<4mA
Light Output
100 -/+ 5% (Lumens)
Country of Origin
Made in India
Brand Name
Oorja Solar
Oorja Solar also manufactures solar cooling cap, solar cooker , Solar Road Studs and Solar Fan etc. Our miscellaneous products array has great demand in the market. All the products manufactured by us are cost effective and as per the needs of customers. Our products are known throughout the world for their unique quality. All the products are exclusive and easy to use.
Features-
- Safe & easy to install
- Free from noise, smoke and pollution
- Available in different configurations
- Required very little attention
- Molded cables for easy connection
- Mobile charging for different types of mobile
Technical Specifications
| Model | SHS-M102 |
| Application | Solar rural electrification for homes, shops, offices etc |
| Daily hours of operation | Average 5 hours |
| Autonomy | 1 day |
| Battery | 12V, 7.2 Ah VRLA |
| Solar PV Module @ 8.4V STC | 12v,10 W p |
| Output | |
| Load Details | 3* 1 W LED Luminary mobile charger |
| Light Output (Lumens) | 100_+ 5% |
| Electrical | |
| System Voltage | 6V DC |
| Luminary Driver Efficiency | >88% |
| Luminary Drive Frequency | 1 MHz |
| System self current consumption | <4mA |
| Solar Charge controller efficiency | >95% |
| Battery Depth of Discharge | <75% |
| Display / Indication | |
| Battery Low disconnect | Red LED glowing |
| Battery Charging | Green LED glowing |
| Protections | |
| No load protection | Provided |
| Short Circuit protection | Provided |
| Luminary Reverse polarity | Provided |
| PV Module Reverse polarity | Provided |
| Reverse current flow to PV Module | Provided |
| Battery Reverse polarity | Provided |
| Battery over charging | Provided |
| Battery deep discharging | Provided |
| Mechanical | |
| Luminary | injection molded abs plastic, with pc cover |
| Controller | injection molded abs plastic, Wall Mount |
| FAN | |
| Volts | 12V |
| SIZE | 11 INCH |
| Environment | |
| Operating Temperature | 0 to 50° C |
| Storage Temperature | -10° C to 60° C |
| Size & weight of complex Box (With Packing) | 345 X 240 X 95 mm (L X W X H) |
| Fan | |
| Sweep | 300MM |
| Volts | 12VAc |
| R.P.M | 1400 |
| Watts | 12 to 18w |
| Load | 1 to 1.5 Amp |

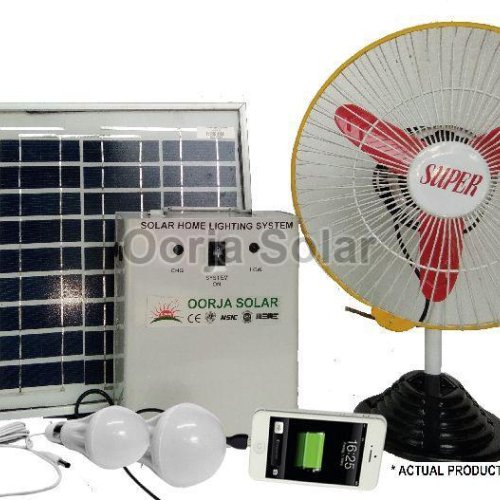

Looking for "Solar Home Lighting System With Fan" ?
